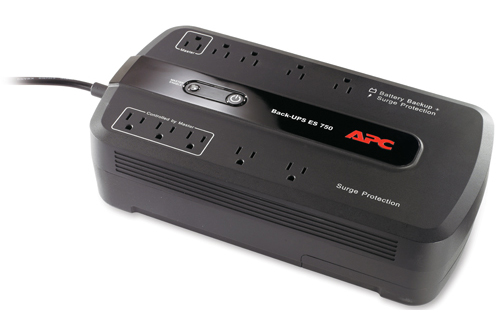

Keep your MyControl Bathing System Operational During Power Outages.
BE750G Features:
- Battery replacement without tools
- Disconnected battery notification
- LED status indicators
- Master and controlled outlets
- USB connectivity
The most popular desktop UPS in the world!
ABT offers information about the BE750G for reference purposes only. Consumer can select the battery back up of their choice as long as that choice meets or exceeds the requirements necessary to power MyControl fully in the vent of a power outage. ABT has determined the Back-UPS ES offers best value for protecting your MyControl Bathing System. It provides battery backup power that allows
you to work through short and medium length power outages. It also safeguards your equipment from damaging surges and spikes that travel along your utility and phone lines. (Coax cable surge protection is also included on selected models.) Award-winning software automatically shuts down your Bathing System in the event of an extended power outage. Additional features like audible alarms, an LED status indicator, user replaceable battery, push-button circuit breakers and transformer-block spaced outlets make the Back-UPS ES the perfect unit to protect your Bathing System from the constant threat of power outages and potential damage. Visit a retailer of this and other battery back up units for purchase. Consumers can inquire about a particular battery back up suitability by calling ABT or asking an independent sales representative.
Technical Specifications:
Output
Output Power Capacity
450 Watts / 750 VA
Max Configurable Power
450 Watts / 750 VA
Nominal Output Voltage
120V
Output Frequency (sync to mains)
60Hz +/- 3 Hz
Waveform Type
Stepped approximation to a sinewave
Output Connections
(5) NEMA 5-15R (Battery Backup)
(5) NEMA 5-15R (Surge Protection)
Input
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
6 feet (1.83 meters)
Input voltage range for main operations
88 – 139V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
16 hour(s)
Replacement battery cartridge
RBC17
RBC™ Quantity
1
Typical Backup Time
at Half Load
11.3 minutes (225 Watts)
Typical Backup Time
at Full Load
2.3 minutes (200 Watts)
Runtime Chart
Back-UPS ES
Included Battery Modules
1
Efficiency in Battery Operation
83%
Maximum Battery Current at End of Discharge
55
Communications & Management
Control panel
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
Surge Protection and Filtering
Surge energy rating
355 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection
RJ-45 Modem/Fax/DSL/ISDN/10-100 Base-T protection,Cable modem / Video protection
Physical
Maximum Height
3.48 inches (88 mm)
Maximum Width
7.09 inches (180 mm)
Maximum depth
13.49 inches (343 mm)
Net Weight
10.34 lbs. (4.70 kg)
Shipping Weight
12.54 lbs. (5.70 kg)
Shipping Height
5.94 inches (151 mm)
Shipping Width
10.16 inches (258 mm)
Shipping Depth
17.80 inches (452 mm)
Master Carton Units
2.00
Master Carton Dimensions (Length x Width x Height)
18 x 12 x 11 inches (465 x 312 x 278 mm)
Master Carton Weight
27.28 lbs. (12.40 kg)
Color
Black
SCC Codes
1073130425660 8
Environmental
Operating Environment
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
5 – 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
5 – 113 °F (-15 – 45 °C)
Storage Relative Humidity
5 – 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
45 dBA
Online Thermal Dissipation
14.00 BTU/hr
Conformance
Regulatory Approvals
FCC Part 15 Class B,FCC Part 68,NOM,UL 1778
Standard Warranty
3 years repair or replace
Equipment protection policy
Lifetime : $75000
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
